How to make a game engine

We are going to write a game engine in javascript without AI and by AI I mean an LLM. That's right kiddos, this is going old school if old school meant doing things the way they were done in the long long ago, in the before time of five years from now. A time when the world was pure. A time when the slop was free range and manmade.

If you are looking for some quick aura farming snack for the tiktoks like something about how to get AI to spit out a snek game or a fluid sim, I only have one thing to say.

star war droids meme

First, what is a game engine? If you were to ask someone, they'd likely give you a blank look before informing you, "Sir, this is a Wendy's"

If you were to ask someone on the internet, they'd point at Unity or Unreal 5 and say, "That!". If this internet person was sporting a fedora, they'd mention game maker, godot, or love2d. And they'd be right but also wrong in a kinda schrodinger way.

You see, to make a game engine, we need to know what a game engine is. And to truly know what one is, we need to build one with our bare hands. Lucky for you, I am going to show you one simple trick to break the superposition.

Games are a subset of game engines which is to say, in every game there, by definition, exists an engine that powers it.

All that must be done to both understand and build a game engine is to build a game. Specifically, build a game in javascript because it is portable. And I have just the game.

Breakout

"Breakout? That game? What even is breakout? Can't AI one shot that?" you asks.

Well, my dear reader you are in for a treat.

Breakout is a fantastic simple game similar to pong. You bounce a ball and destroy blocks. Simple enough and a perfect starter game. You'll see. It is going to be fun.

The real beauty of it is that the base is simple to understand but not so constrictive we couldn't have some fun with it. Also, it is good that AI can one shot it because once we are done we can feel really good about ourselves for having done something so exceedingly pointless. I mean after all, why would I paint the Mona Lisa when I could print a picture of that babe instead?

Let us begin, first to create a game, you must create the universe.

The Universe

The first task is to model the universe. I will name my universe "Game".

const Game = {};

It is beautiful. Now, let there be space.

const Game = {
  width: 100,
  height: 100,
};

What is space if nothing exists in it?

const Game = {
  width: 100,
  height: 100,
  ball: {
    x: 50,
    y: 50,
    size: 20,
  },
};

You get the picture. Don't overthink it. This is great.

What performance? Shush you. We have barely begun cooking.

The universe is a little static though.

const Game = {
  width: 100,
  height: 100,
  ball: {
    x: 50,
    y: 50,
    dx: 1,
    dy: 1,
    size: 20,
  },
  tick() {
    this.ball.x += this.ball.dx;
    this.ball.y += this.ball.dy;
  },
};

Now we need to blast our eyeballs with some blue light to make the abstract more stract and I know just the thing.

const container = document.getElementById(containerId);
const screenWidth = container.clientWidth;
const screenHeight = container.clientHeight;
const ballDiv = document.createElement("div");
Object.assign(ballDiv.style, {
  position: "absolute",
  left: "0",
  top: "0",
});
container.appendChild(ballDiv);

const Game = {
  width: screenWidth,
  height: screenHeight,
  // the rest
  draw() {
    const b = this.ball;
    ballDiv.style.boxShadow = `${b.x}px ${b.y}px 0 ${
      b.size / 2
    }px #fff`;
  },
};

function universe() {
  Game.tick();
  Game.draw();
  requestAnimationFrame(universe);
}

universe();

Go ahead and take it for a spin below.

We render by having an absolutely positioned div on the top left of the screen. We then draw the ball via a box shadow which will match the div's 0 size. The 4th param of a box shadow is a spread value which will be 1px when the div has no width and height. A spread of 20px is like a box with a width/height of 20px centered at the given x/y offset of the box shadow.

What? Is that not a good way to draw a ball on the screen? Don't worry about that friend. Look over here, did you see it move?

You may have missed it but that little white ball moved! Amazing. However, I think the ball is supposed to bounce off the edges in a breakout game.

Time to put on the thinking cap.

thinking cap

We have our universe. Now to implement the rest of breakout. Good to write it down.

There are a few more rules around losing the game but I think those cover the core mechanics.

First, the world shouldn't only have one ball, it should have many balls. That is an easy change, use an array of balls. It would be useful to add a function to our universe which will create a ball.

balls: [],
addBall(x = this.width / 2, y = this.height / 2, speed = 8) {
  const angle = Math.random()*2*Math.PI;
  this.balls.push({
    x,
    y,
    dx: Math.cos(angle)*speed,
    dy: Math.sin(angle)*speed,
    size: 20,
  });
}

We give the ball a random direction now. There is a formula for finding a point on the unit circle based on an angle. We grab a random angle and then use the formula to find the point noting that the math functions expect radians. We can then apply a speed to this direction by scaling this point by a factor. This works because a unit circle is always normalized to a radius of 1.

Drawing multiple balls is trivially easy, we just draw more box shadows.

draw() {
  ballDiv.style.boxShadow = this.balls.map(b => `${b.x}px ${b.y}px 0 ${b.size/2}px #fff`).join();
}

Bouncing is easier. We need to check if the position of a ball is outside bounds. If it is, we want to correct the position and reverse the velocity depending on if it hit the left/right or top/bottom.

No need to think about fancy algorithms. If a ball's x position + half the size is bigger than the width, we undo the dx and invert it and the same for the y axis too.

tick() {
  const {width: w, height: h} = this;
  this.balls.forEach((b) => {
    b.x += b.dx;
    b.y += b.dy;
    if (b.x + b.size/2 > w || b.x < b.size/2) {
      b.x -= b.dx;
      b.dx *= -1;
    }
    if (b.y + b.size/2 > h || b.y < b.size/2) {
      b.y -= b.dy;
      b.dy *= -1;
    }
  });
},

One is the loneliness number but it doesn't have to be if we give them a 2 and 3 to hang with.

Look at them go. How fun. Let's make some bricks.

Did you know bricks are kinda like balls? Let's add a brick in the center and with a ball bouncing around.

const brickDiv = document.createElement('div');
container.appendChild(brickDiv);
const BRICK_SIZE = [60, 15];
Object.assign(brickDiv.style, {
  position: 'absolute',
  borderRadius: '2px',
  left: `-${BRICK_SIZE[0]}px`,
  top: `-${BRICK_SIZE[1]}px`,
  width: `${BRICK_SIZE[0]}px`,
  height: `${BRICK_SIZE[1]}px`,
});

const Game = {
  // ...
  bricks: [],
  addBrick(x = this.width / 2, y = this.height / 2) {
    this.bricks.push({
      x: x - BRICK_SIZE[0] / 2,
      y: y - BRICK_SIZE[1] / 2,
    });
  },
  // ...
  draw() {
    // ...

    const [bW, bH] = BRICK_SIZE;
    brickDiv.style.boxShadow = this.bricks.map(b => `${b.x + bW}px ${b.y +bH}px 0 0 #fff`).join();
  }
};

Game.addBall(60, Game.height - 60);
Game.addBrick();

Bricks are a little different. Box shadows spread value is uniform in all directions which means you cannot have a different width and height. This is fine. If we position a div off screen with the width/height a brick, we can still use a box shadow to draw with. We do need to make sure that when we draw, we adjust for the offscreen position of the dev so that 0,0 is the top left of the screen.

This is great because right now our game only has 2 divs for all our balls and bricks. Talk about performance!

This is great but it looks wrong and I am sure you know why. No bouncing!

How do we bounce though? Well, if we think about it, we just need to check if some part of the ball overlaps with the brick.

We can assume the x and y positions represent the center of the ball and brick. So if the balls right most edge is > then the brick's left most edge AND greater than the brick's right most edge, then the x axis overlaps.

Now if we do the same for the y axis checking if the balls top most edge is between the brick's top and bottom edges well, then there is overlap.

If we do this with the left, right, top, and bottom positions of the ball compared to a brick. We will know there is a collision.

We can take a note from before and simply undo the dx/dy change and invert the axis with the largest overlap.

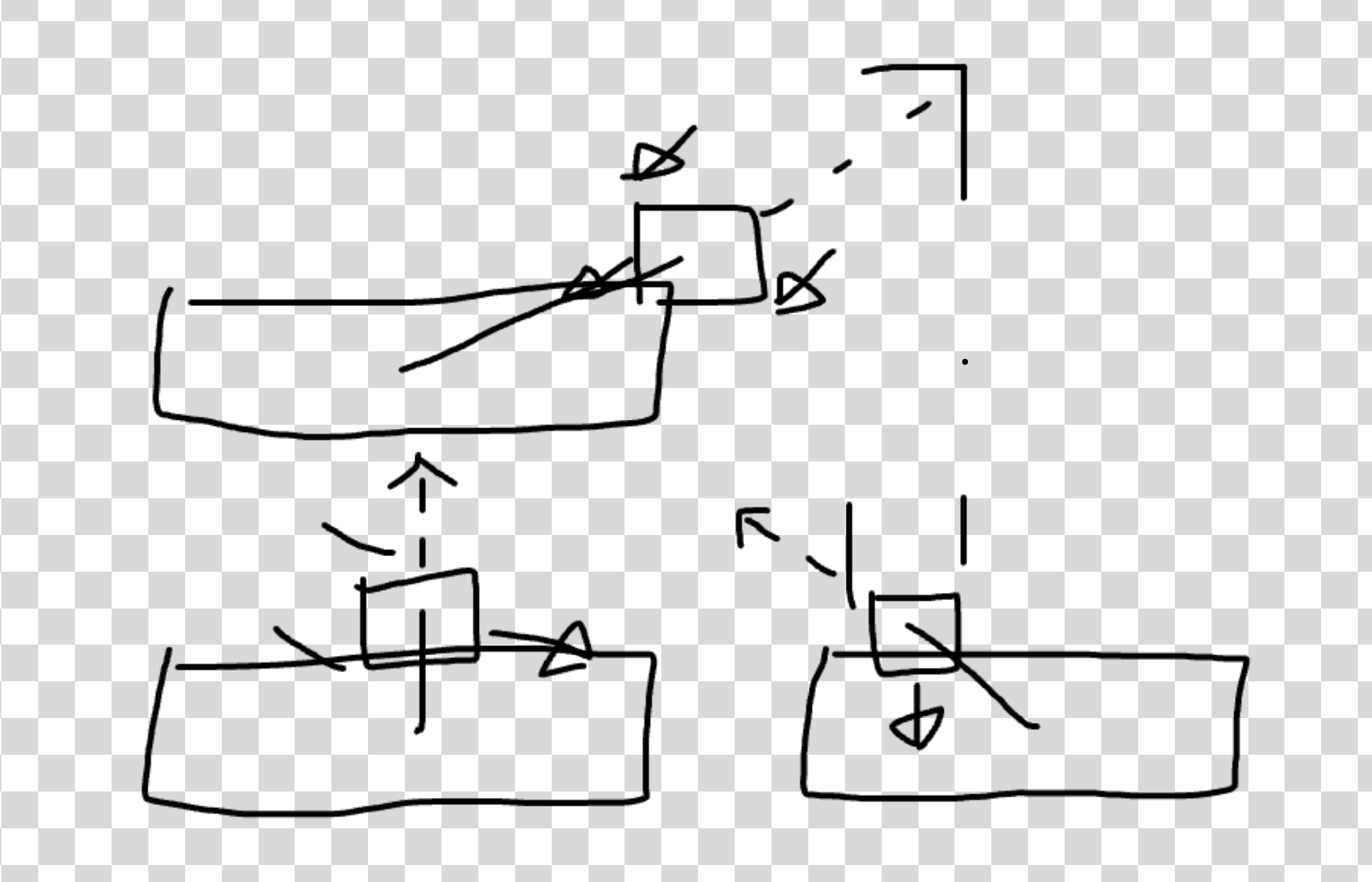

Confused? Take your phone, now find something squarish around you. Overlap part of your phone on a corner of the squarelike thing. The intersection of the two squarelikes is a box. That is what we want.

If for whatever reason there are no squarelike things around, this will help.

We can add this to our tick function after checking the screen edges.

const [brickWidth, brickHeight] = BRICK_SIZE;
const ballL = b.x - b.size/2;
const ballR = b.x + b.size/2;
const ballT = b.y - b.size/2;
const ballB = b.y + b.size/2;
for (const brick of this.bricks) {
  const brickL = brick.x - brickWidth/2;
  const brickR = brick.x + brickWidth/2;
  const brickT = brick.y - brickHeight/2;
  const brickB = brick.y + brickHeight/2;
  if ((ballL > brickR || ballR < brickL)) {
    continue;
  }
  if ((ballT > brickB || ballB < brickT)) {
    continue;
  }
  const xDif = Math.min(ballR - brickL, brickR - ballL);
  const yDif = Math.min(ballB - brickT, brickB - ballT);
  if (xDif < yDif ) {
    b.x -= b.dx;
    b.dx *= -1;
  } else if (xDif > yDif) {
    b.y -= b.dy;
    b.dy *= -1;
  } else {
    b.x -= b.dx;
    b.dx *= -1;
    b.y -= b.dy;
    b.dy *= -1;
  }
  break;
};

Once we know the overlap, we can figure out what axis it is based on the overlap size. It is worth noting, this is not perfect.

What if the ball travels at light speed? It may jump past a brick completely! There are ways to solve this edge case.

We can solve it by issuing a special edict, no ball shall travel at light speed. There done, problem solved without a line of code.

Actually, another issue can happen. Sometimes, at tiny edge hits, moving the balls back by their dx/dy isn't enough to prevent another collision next frame, they then can get stuck in a block. A simple way to solve this is to push the ball's back a little further than the last time step.

b.x -= b.dx*1.02;
// ...
b.y -= b.dy*1.02;

Let's see what this looks like now.

Nice. What is that? You wanted a physics engine? This IS a physics engine. Is it accurate? Not really, but how accurate can one be with floating point numbers anyways? Look guy, relax, don't worry about it. This is about making a game engine not a physics engine silly.

Our game's physics engine is almost complete. It would be trivial to remove the block when a hit happens and update a score counter or something.

addBrick(x = this.width / 2, y = this.height / 2) {
  this.bricks.push({
    x,
    y,
    isAlive: true,
  });
},

this.balls.forEach((b) => {
  // ...
  for (const brick of this.bricks) {
    if (!brick.isAlive) {
       continue;
    }
    // ...
    brick.isAlive = false;
    // maybe update score or something
    break;
  };
});

this.bricks = this.bricks.filter(b => b.isAlive);

You could clean up mid loop too. It doesn't matter until it does matter and right now it doesn't.

Time to add a paddle to the world. A paddle is like a brick but it doesn't die, and you can control it.

Speaking of control, how should that be done? Arrow keys? wasd? mouse? touch? Oh my!

We will pick touch/mouse input. While I am sure keyboard and controller support would be nice additions to our input engine, this input should suffice. It will cover both desktop and mobile platforms. Heck, even smart TVs should work.

First, the paddle needs to exist.

Behold, a paddling paddle made by paddling a brick into a paddle.

const paddleDiv = document.createElement('div');
container.appendChild(paddleDiv);
const PADDLE_SIZE = [100, 10];
Object.assign(paddleDiv.style, {
  position: 'absolute',
  left: `-${PADDLE_SIZE[0]}px`,
  top: `-${PADDLE_SIZE[1]}px`,
  width: `${PADDLE_SIZE[0]}px`,
  height: `${PADDLE_SIZE[1]}px`,
});

const Game = {
  // ...
  paddles: [],

  addPaddle(x = this.width /2, y = this.height - PADDLE_SIZE[1]*2) {
    this.paddles.push({
      x,
      y,
      width: PADDLE_SIZE[0],
      height: PADDLE_SIZE[1],
    });
  }

  draw() {
    // ...

    const [pW, pH] = PADDLE_SIZE;
    paddleDiv.style.boxShadow = this.paddles.map(p => `${p.x + pW/2}px ${p.y + pH/2}px 0 0 #fff`).join();
  }
}

A good question may be, do we really need more than one paddle? I don't know but it is a side effect of copying the brick code.

You would think we could copy the collision code to right? And you would be! However, that breaks the rules.

You see, I will let you in on a little secret about break out which the majority of online tutorials never mention.

What makes breakout not mind-numbingly boring after 3.50 seconds is the ability to aim the ball with the paddle. This doesn't use any kind of complex angular moment or whatever. It is simpler.

The idea is that you can control the ball direction based on the position of the x axis it hits the paddle. If it hits the paddle perfectly center, the ball goes up at a perfect 90 degree. The closer to the left the balls hits, the closer to 180 degrees the ball goes. The closer to the right it hits, the closer to 0 degrees it goes.

We then handle those rare edge hits by inverting both the x and y directions. This almost guarantees a safe ball. Why? Because we want the player to feel good when they make that "perfect" save.

These rules allow for a more active game where you try and perfectly angle your shots to get at those pesky corner bricks.

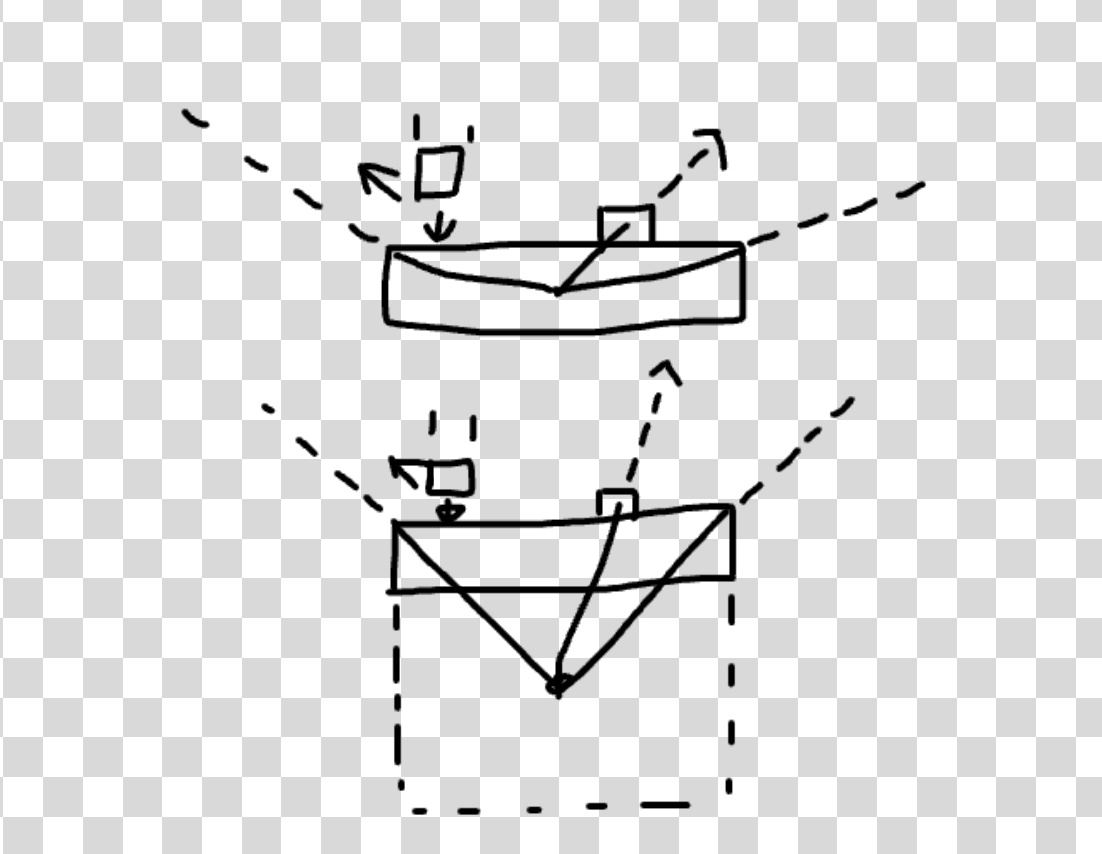

To help us out I made a little drawing.

example of blocks bouncing using the special logic of breakout

If you notice, the angle between the center of the paddle and ball is just about the exact direction we want the ball to go in. If it is in the center, it is 90 degrees up. As it gets towards the left or right of the paddle, the ball angle deflects more aggressively.

It isn't perfect but I think it works. The logic is then simple, find the angle between the center of the ball and paddle, and set the ball in that direction.

What vectors? I am not sure what those are. I do know if we take the arch tangent of the difference of the two points we get the angle back in radians. We can then use the same code to finding a random point on a unit circle to find the dx/dy positions for this angle.

It looks like this.

const angle = Math.atan2(b.y - p.y, b.x - p.x);
// get the speed by finding the length of direction by treating it as a triangle
const speed = Math.sqrt(b.dx*b.dx + b.dy*b.dy);
// get the point on unit circle of angle and then scale by speed
b.dx = Math.cos(angle)*speed;
b.dy = Math.sin(angle)*speed;

Putting that together in the ball loop.

// check paddles
for (const p of this.paddles) {
  // just like bricks
  const pL = p.x - p.width/2;
  const pR = p.x + p.width/2;
  const pT = p.y - p.height/2;
  const pB = p.y + p.height/2;
  if ((ballL > pR || ballR < pL)) {
    continue;
  }
  if ((ballT > pB || ballB < pT)) {
    continue;
  }
  // but no need for overlap
  b.x -= b.dx;
  b.y -= b.dy;
  const angle = Math.atan2(b.y - p.y, b.x - p.x);
  const speed = Math.sqrt(b.dx*b.dx + b.dy*b.dy);
  b.dx = Math.cos(angle)*speed;
  b.dy = Math.sin(angle)*speed;
  break;
};

For Input we grab the x position of the mouse/touch and set all the paddles x values to the same. No need to overcomplicated the input system of our engine.


const Game = {
  handleMouseOrTouchInput(event) {
    event.preventDefault();
    const x = (event?.touches?.[0]?.clientX) ?? event.offsetX;
    const y = (event?.touches?.[0]?.clientY) ?? event.offsetY;
    this.paddles.forEach(p => p.x = x);
  },
}

// ...

container.addEventListener("pointermove", (e) => Game.handleMouseOrTouchInput(e));
container.addEventListener("touchmove", (e) => Game.handleMouseOrTouchInput(e));

And with that we have just about all the mechanics.

Amazing! Add more bricks, score, and that's a game.

Now hold up there cowboy, we arn't done yet.

This has major issues, there is some jank and the game both looks and feels pretty bland. If we are honest here, it is a bit of a turd.

But that is ok, because if you polish a turn enough, it will shine bright like diamond, at least that is what my mother told me.

polishing a turd

Ok, first up we should do a little polish pass on the code, clean up numbers, tighten up edge cases etc. Most of polishing here is adding a few more conditionals to handle the edge cases.

For example, the ball can be knocked out of bounds pretty easily by the paddle. It can also get stuck in the paddle.

Another issue is that right now the game will run as fast as the requestAnimationFrame runs. This means if your device refreshes frames 120 or 144 times a second the game will be 2 times faster than it should be!

Fixing this isn't too hard as the requestAnimationFrame will give us how long it has been since the last time it was called. We can use this to smooth out how fast the game runs.

If the last update took 1ms, then we scale everything by a tiny fraction, but if it took 500ms, then we scale by 500x 1ms. This effectively unlocks the frame rate.

It isn't complicated, only about 5 lines.


const Game = {
  tick(dt) {
    // scale the updates by time
    b.x += b.dx * dt;
    b.y += b.dy * dt;
    // etc
  }
}

let lastTime = 0;
function universe(delta) {
  if (lastTime === 0) {
    lastTime = delta;
  }

  // normalize from ms to seconds.
  const dt = (timestamp - lastTime) / 1000;
  Game.tick(dt);
  Game.draw();

  lastTime = delta;
  requestAnimationFrame(universe);
}

universe(lastTime);

Before the ball speed was 6 which meant 6 pixels per `requestAnimationFrame`` or 660 pixels/s. The issue is if the device running the game were 120, it is 6120 pixel/s Wow that is fast.

With the delta time smoothing it is 6 pixels a second. To get the same speed as before, we can set the speed to 360. Other game engines my use a unit like meters. I like pixels so we will stick to that.

Next the ball can get stuck in the paddle or brick, and jump out of bounds. Both of these issues are because we do not find the "perfect" correction when a collision is detected. We only undo that last move and hope that the ball didn't just "undo" into another collision.

It isn't hard to fix this with the paddle and bounds by moving the ball back by the amount overlap amount. However, for bricks at extreme corner hits the simple overlap fix fails. This is because at certain time steps the overlap will look like a y axis when it is actually an x axis hit.

It doesn't always happen but when it does it is a sad day in heaven and feels ever so wrong.

One way to fix it is to solve each axis consecutively making sure to only update the ball's position one axis at a time.

const bHalfSize = b.size/2;
const [brickWidth, brickHeight] = BRICK_SIZE;
// x axis
b.x += ballDx;
// recalc ball edges
for (const brick of this.bricks) {
  if (!brick.isAlive || brick.health <= 0) {
    continue;
  }
  // recalc brick edges
  if ((ballT > brickB || ballB < brickT) || (ballL > brickR || ballR < brickL)) {
    continue;
  }

  b.x = ballDx > 0 ? brickL - bHalfSize - 1 : brickR + bHalfSize + 1;
  b.dx *= -1;
  didBounce = true;
  break;
};

// y axis
b.y += ballDy;
// recalc ball edges
for (const brick of this.bricks) {
  if (!brick.isAlive || brick.health <= 0) {
    continue;
  }

  // recalc brick edges
  if ((ballT > brickB || ballB < brickT) || (ballL > brickR || ballR < brickL)) {
    continue;
  }

  b.y = ballDy > 0 ? b.y = brickT - bHalfSize - 1 : brickB + bHalfSize + 1;
  b.dy *= -1;
  didBounce = true;
  break;
};

Nice, but one more thing.

I am also going to pretend the paddles center point is a bit further down on the y axis. The reason is to make it so the angle the ball reflects off the paddle is more gradual. Right now it is too easy to get the ball to move aggressively on the x axis. Sharp x axis movement is very very slow on the y axis making the whole game "feel" slower. While it can be useful to get the ball into tight corners it shouldn't feel like the default gameplay is watch a ball bounce 100 times on the sides slowly moving up before coming back down.

shows bigger simulated square box narrowing the possible reflected angles to 90 degrees

What would feel more natural is if the paddle were a box with equal sides. This takes the possible angles from 120 degrees or so down to a perfect 90. This is fantastic as edge its on the side will still get agro side to side movement which sometimes is desirable when aiming. It is easy to tweak this by making the center point maybe 50% of the length if you pref a wider angle. We like the options.

What? That isn't real physics? Look guy, be a frwend. We are talking game feel here. It isn't about the real but the feel.

const xDif = Math.min(ballR - pL, pR - ballL);
const yDif = Math.min(ballB - pT, pB - ballT);
if (xDif < yDif) {
  b.x += b.x > p.x ? xDif : -xDif;
} else {
  b.y += b.y > p.y ? yDif : -yDif;
}
// find the top of the paddle then move down the width
const angle = Math.atan2(b.y - (p.y - p.height/2 + p.width/2) , b.x - p.x);
const speed = Math.sqrt(b.dx*b.dx + b.dy*b.dy);
b.dx = Math.cos(angle)*speed;
b.dy = Math.sin(angle)*speed;

And look at that, an easy change for a better experience.

How does it feel now?

Speaking of game feel. Part of polishing a turd is to make it juicy. Let us moisten this up with a spritzing of morning dew.

making it juicy

The juice factor is all about feeding that goozy little goblin in all our brains. The one that loves dopamine. I could use many a word to describe what the juice factor is but it is simpler to just play a few slot machines or Balatro. THAT is the juice factor.

We want each event to "feel" good. Let's go back to the ball and the brick. When the ball bounces off something, we can add a scale and color impact.

The idea is to give pay off to the anticipation of the event that the gooey goblin expects. You see the ball move towards the brick, waiting waiting, almost there, HIT!

That HIT! needs to "feel" like a hit.

This is all pretty trivial to add by using a legendary technique passed down generation to generation of game dev, "tweening". The simplest way to tween is to linearly interpolate between values across time. Don't worry, we actually have already done this with th delta time from above.

It'd be good to have a sugary api to make adding tweens easy. Let's make the ball "bounce" in size when hit.

tween(b, 'size', b.size, b.size*.8, 0.1);
// delay the second tween by the duration of the first
tween(b, 'size', b.size*.8, b.size, 0.1, 0.1);

Implementing could look like this.

// linear interpolation
const lerp = (from, to, time) => from + (to-from) * time;

const Game = {
  tweens: new Set(),

  tween(target, prop, from, to, duration, delay = 0) {
    this.tweens.add({target, prop, from, to, duration, delay, t: 0});
  }

  tick(dt) {
    for(const tween of this.tweens) {
      const {target, prop, from, to, duration } = tween;
      tween.delay -= dt;
      if (tween.delay > 0) continue;
      target[prop] = lerp(from, to, Math.min(1, tween.t/duration));
      if(tween.t > duration) this.tweens.delete(tween);
      tween.t += dt;
    }
  }
}

While this would work one thing to be careful of when stacking tweens is to think about the case of multiple tweens on one value. Say tween A is mid way done, the size is at 15 moving towards 20. If another tween starts using the above logic, it would take the current size 15 scale it down 20% and then tween to 15. This is wrong though, the starting size is 20!

Whatever can we do? More code? Surely not.

I simple trick here is to animate a different value which only changes how things visually look. This will also fix any physics issues with tweening simulated size values.

We add a scale, offset and maybe color to any object we may want to tween. Usually, you want to animate size/position/rotation/skew/color kind of props. Visual stuff, not logic based things like speed or health.

Another thing that'd be nice to think about is stacking effects. We can use the delay idea but what if we want to setup like 5 values to tween like a screen shake?

A delay would work by carefully tracking all the right delays times or maybe we can think of a nicer api to use.

// tween b.scale from 1->.8->1 over .2s with .1s delay
tween(b, 'scale', [1, 0.8, 1], 0.2, .1);

Nice, we can provide an array of "keyframes" values to the tween function. It will animate across them based on the overall duration. We still can have a delay if we want.

// linear interpolation
const lerp = (from, to, time) => from + (to-from) * time;

const Game = {
  tweens: new Set(),

  tween(target, prop, keyframes, dMs, delayMs = 0) {
    this.tweens.add({target, prop, keyframes, duration: dMs / 1000, delay: delayMs / 1000, t: 0});
  }

  tick(dt) {
    // other code

    for (const tween of this.tweens) {
      const { target, prop, keyframes, duration } = tween;

      tween.delay -= dt;
      if (tween.delay > 0) continue;
      tween.t += dt;
      const frames = keyframes.length - 1;
      const progress = Math.min(1, tween.t / duration);
      const kIdx = Math.min(frames - 1, Math.floor(frames * progress));
      const localProgress = (progress - kIdx / frames) / (1 / frames);
      target[prop] = lerp(keyframes[kIdx], keyframes[kIdx + 1], localProgress);

      if (tween.t < duration) {
          continue;
      }

      target[prop] = keyframes[keyframes.length - 1];
      this.tweens.delete(tween);
    }
  },
}

Look at that, about 15 lines of code for janky keyframe animations. The gist is that we find the local range between 2 keyframes and then map the tween progress to a local progress value between frames. We always assume there are at least 2 frames eg, 1 key frame with a from/to. An array of 3 would be 2 key frames [1,0,1] from 1 to 0 then 0 to 1.

The other thing is to have the tween function take in duration and delay as time in milliseconds rather than seconds. You can use seconds if you like but I find ms to be easier to tune.

Whole numbers make my brain happy.

Ok, now we can add some juice. Let's add a shake effect when something is hit along with a color flash. For a screen shake we need to have a "camera" which we can wiggle around. We also want to give all objects that can tween some uniform values. For now it is offsetX, offsetY, color, and scale.

const Game = {
  camera: {
    scale: 1,
    offsetX: 0,
    offsetY: 0,
  },

  addBall(x = this.width / 2, y = this.height / 2, speed = 360) {
    this.balls.push({
      //...
      scale: 1,
      offsetX: 0,
      offsetY: 0,
      color: [255,255,255],
    });
  },
  // other objects too.

  draw() {
    ballDiv.style.boxShadow = this.balls.map(b => `${b.x + b.offsetX}px ${b.y + b.offsetY}px 0 ${(b.size/2)*b.scale}px rgb(${b.color.join()})`).join();

    // other objects

    container.style.transform = `translate(${this.camera.offsetX}px,${this.camera.offsetY}px)`;
  },
}

Then we can have some helper tweens.

shakeIt(obj, dist = 4, dir = undefined) {
  let ox = -dist/2 + Math.random()*dist;
  let oy = -dist/2 + Math.random()*dist;
  if (dir) {
    ox = dir[0] * dist;
    oy = dir[1] * dist;
  }
  this.tween(obj, 'offsetX', [0, ox, -ox, ox/2, 0], 260);
  this.tween(obj, 'offsetY', [0, oy, -oy, oy/2, 0], 260);
},
flashIt(obj) {
  this.tween(obj.color, '0', [100, 100+Math.random()*155, 255], 180);
  this.tween(obj.color, '1', [100, 100+Math.random()*155, 255], 180);
  this.tween(obj.color, '2', [100, 100+Math.random()*155, 255], 180);
}

Now when the ball hits the edge of the screen we can

this.shakeIt(this.camera, 3);

And when it hits the paddle we can shake it directly down as that is the anticipated direction.

this.shakeIt(p, 3, [0,1]);
this.flashIt(p);

The brick won't die just yet, we will let him shake and flash too.

Feels fun ya? The screen shake is a little much with how small the game space is but this already "feels" better. But I don't think this is wet enough.

Great, one last thing we could tack on here is a way to fire an event or similar when a tween completes. This is useful for playing an animation for when a brick is removed.

tween(target, prop, keyframes, duration, delay = 0, onComplete = undefined) {
  this.tweens.add({
    target, prop, keyframes, t: 0,
    duration: duration/1000,
    delay: delay/1000,
    onComplete
  });
},
// later
for (const tween of this.tweens) {
    // other code

  target[prop] = keyframes[keyframes.length - 1];
  this.tweens.delete(tween);
  if (tween.onComplete) {
    tween.onComplete();
  }
}

// in the bricks
this.flashIt(brick);
this.shakeIt(brick, 5)
this.tween(brick, 'scale', [1, 0], 300, 0, () => brick.isAlive = false);

While the game is juicy it still is a bit of a turd. It still doesn't shine.

did I say to stop polishing?

Ok, our game has come a long way and it is time to add more content. This is so much fun.

Score

Score is easy. Draw some text at the top of the game. Every time you break a brick you get 100 points. Why 100 and not just 1? Because people like big numbers.

const scoreContainer = document.createElement('div');
container.appendChild(scoreContainer);
// set styles

const Game = {
  score: 0,
  lives: 3,
  level: 1,
}

draw() {
  // other draw
  scoreContainer.innerText = `${this.score.toLocaleString()}`;
}

Nice. We can make it juicy with a tween when we update the score.

Levels

For levels, we could store them in a config file but for now a few little scripts that place bricks based on the screen size is good enough.

spawnLevel_1() {
  let [w, h] = BRICK_SIZE;
  w += 1; // little padding around bricks
  h += 1;
  const countW = Math.floor(this.width / w);
  const countH = Math.floor(this.height / h);
  const rW = this.width % w;
  const rH = this.height % h;
  const sx = rW /2 + w / 2;
  const sy = rH /2 + h / 2;
  const xPad = 1; // brick count padding.
  const yPad = 4; // only does the starting
  for (let i = xPad; i < countW - xPad; i++) {
    const x = sx + i*w;
    for (let j = yPad; j < countH; j++) {
      const y = sy + j*h;
      if (y < 40) continue;
      if (y > 180) break; // space for play area.
      this.addBrick(x, y);
    }
  }
}

Nice. It will fill the screen full of bricks with reasonable spacing. This works but could be better if we want lotsa levels.

It sure would be awfully nice to have a spawnLevel(config) function that takes an optional configuration. Let's make one!

Having an optional predicate for special logic brick placement logic would be worthwhile too.

spawnLevel(config) {
  const {
    blockWidth, blockHeight, screenWidth, screenHeight,
    brickGutterPx, xBrickPad, yBrickPad,
    playAreaPxBot, playAreaPxTop,
    playAreaPxLeft, playAreaPxRight,
    predicate,
  } = {...defaults, ...config};
  const brickAreaW = screenWidth - playAreaPxRight - playAreaPxLeft;
  const brickAreaH = screenHeight - playAreaPxBot - playAreaPxTop;
  const bW = blockWidth + brickGutterPx;
  const bH = blockHeight + brickGutterPx;
  const xBrickCount = Math.floor(brickAreaW / bW);
  const yBrickCount = Math.floor(brickAreaH / bH);
  const rW = brickAreaW % bW;
  const rH = brickAreaH % bH;
  const sx = playAreaPxLeft + rW / 2 + bW / 2;
  const sy = playAreaPxTop + rH / 2 + bH / 2;
  for (let i = xBrickPad; i < xBrickCount - xBrickPad; i++) {
    const x = sx + i * bW;
    for (let j = yBrickPad; j < yBrickCount; j++) {
      const y = sy + j * bH;
      predicate({ x, y, i, j, xBrickCount, yBrickCount });
    }
  }
}

And then we add a level like so.

goToNextLevel() {
  this.level++;
  if (this.level === 1) {
    this.spawnLevel({
      predicate: ({x, y, i, j, countW}) => {
        return j % 3 === 0 ? undefined : this.addBrick(x, y);
      }
    });
  }
  // etc.
}

Nice. Slap a bit of unsafe external javascript loading and we have level mods! What about power ups?

I have the power!

Power ups will have a chance to drop when a brick croaks. There will also be "special" bricks which always drop specific power ups or even get fancy and blow up nearby bricks. The world is our oyster.

What power ups should we have?

Amazing. A power up will be a simple colored circle which falls downwards. When it hits the paddle using an overlap check, we kill it and give the player the power. If it moves outside the game area, we remove it and it counts as missed.

You know the drill right? Copy our balls div, name it powerUpDiv, add it to the draw function, make a addPowerUp function that has a type, copy the balls code removing everything but the paddle collision logic, and add a bunch of ifs in there for the different kinds of power ups.

Delicious. Oh, make sure to remove the power up after it hits the paddle.

const powerUpDiv = document.createElement("div");
container.appendChild(powerUpDiv);
const POWER_UP_SIZE = 16;
Object.assign(powerUpDiv.style, {
  position: "absolute",
  left: `-${POWER_UP_SIZE}px`,
  top: `-${POWER_UP_SIZE}px`,
  width: `${POWER_UP_SIZE}px`,
  height: `${POWER_UP_SIZE}px`,
  borderRadius: '9000px',
});

const Game = {
  //...
  powerUps: [],
  addPowerUp(x = this.width / 2, y = this.height / 2, type = 0, speed = 160) {
    this.powerUps.push({
      x,
      y,
      dx: 0,
      dy: speed,
      type,
      isAlive: true,
      size: 16,
      scale: 1,
      offsetX: 0,
      offsetY: 0,
      // different power colors
      color: [...this.powerColors[type]],
    });
  },
  //...

  tick() {
    // power ups
    for (const power of this.powerUps) {
      // update and check collision

      if (power.y > this.height) {
        power.isAlive = false;
        // whoop you missed it
        continue;
      }

      if (power.isAlive) {
        continue;
      }

      if (power.type === 0) {
        // THE POWER!
      }
    }

    this.powerUps = this.powerUps.filter((pow) => pow.isAlive);
  }
}

Adding a power up when a block bites the dust isn't hard. Let's be generous and have a 10% chance.

damageBrick(brick) {
  // check if we are dead
  // if so, check for power up
  if (Math.random() > .9) {
    this.addPowerUp(brick.x, brick.y);
  }
},

Call this when the brick is hit and we have power ups. But they don't do much. Let's change that.

First, ball splitting.

const PowerUpTypes = {
  MultiBall: 0,
  BigBall: 1,
  PowerBall: 2,
  // etc
}

// in power up loop
if (power.type === PowerUpTypes.MultiBall) {
  this.balls.map(b => [b.x, b.y]).forEach(([x,y]) => this.addBall(x,y));
}

This works but having so many ifs can be a bit ugi. Wouldn't it be nice if it were one line?

const BallTypes = {
  Normal: 0,
  PowerBall: 1,
}

const PowerUpEffects = {
  [PowerUpTypes.MultiBall]: (game, powerUp) => {
    game.balls.map(b => [b.x, b.y]).forEach(([x,y]) => game.addBall(x,y));
  },
  [PowerUpTypes.BigBall]: (game, powerUp) => {
    game.balls.forEach(b => b.size *= 2);
  },
  [PowerUpTypes.PowerBall]: (game, powerUp) => {
    game.addBall(powerUp.x, powerUp.y, BallTypes.PowerBall);
  },
  [PowerUpTypes.ExtraLife]: (game, powerUp) => {
    game.lives += 1;
  },
  [PowerUpTypes.SpeedUp]: (game, powerUp) => {
    game.balls.forEach(b => {
      b.dx *= 1.25;
      b.dy *= 1.25;
    });
  },
  [PowerUpTypes.SpeedDown]: (game, powerUp) => {
    game.balls.forEach(b => {
      b.dx *= .9;
      b.dy *= .9;
    });
  },
};

// in loop it is one line.
PowerUpEffects[power.type]?.(game, power);

// spawn by picking a random power up.
if (Math.random() > 0.9) {
  const types = Object.values(PowerUpTypes);
  this.addPowerUp(brick.x, brick.y, types[Math.floor(Math.random()*types.length)]);
}

We knocked out the easiest ones already!

What was that? Is this the best way of doing power ups? Best practices?

Don't think about that, look over there at the game. See how much more fun it is!

We did do a little off offscreen work: making the power ball red, making power ups wiggly, setting up more types, nothing major.

The new code is getting pretty repetitive so we will rapid fire the last power ups. Oh, did you want to see the code? All our previews have that little "code" button you can tap on. Don't worry the rest of the power up are pretty uninteresting.

Puh puh puh powwah!

Life, death, and more levels

What is victory without defeat?

To top off the polishing pass we will round it all out. The game should start paused to give the player time to prepare. Similarly, when all the balls are dead, the game should pause before using one of the players "lives" or spare balls. We need logic to destroy a ball if it goes out of bounds but only for the bottom of the screen.

Most of this is pretty easy to implement. First, our universe needs to have an off button or well pause button. It doesn't "fully" pause the sim but most of it.

const Game = {
  isPaused: true,


  tick(dt) {
    if (isPaused) {
      return;
    }
  }
}

That isn't right. We still want our tweens to run because our menu isn't gonna just "pop" into existence.

  tick(dt) {
    if (!isPaused) {
      // update game
    }

    updateTween(dt);
  }

Now we can add a few more div's to our game to hold some UI. One for the pause title, one for the lives, one for the "play" button, and another just in case.

const menuPaused = document.createElement('div');
const titleDiv = document.createElement('div');
menuPaused.appendChild(titleDiv);
// etc
const msgDiv = document.createElement('div');
const startButton = document.createElement('button');
const scoreContainer = document.createElement('div');

We have a parent for the menu so we can add a transparent background with a blur filter to give the game a "pause" feel. Less is more with styling so the title and button remain simple.

The title shows the level you are on and the button says play or similar. Lives will be a number with a little green styling to convey it is your "health."

While we could extend the input system to listen to taps and check if they fall within a list of buttons bounds, it is easier to toss a div in and add a few event listeners to it. What will help here is if we add a few helper functions on the game to make it easier to control both the game state and UI along with it.

This is the idea.


if (b.y > this.height) {
  // we are outside the screen
  b.isAlive = false;
}

// after updating balls
this.balls = this.balls.filter(b => b.isAlive);

if (this.balls.length === 0) {
  this.doTheDeathThing();
}
if (this.blocks.length === 0) {
  this.doTheWinThing();
}

When you die, mega screen shake, boof the lives display, reset paddle, reset ball, and pause the game. Knocking out all the state is tedious but doable.

onLifeLost() {
  this.showMenu();
  this.onResetLevel();
  this.megaShake(this.camera, 30);
  // delayed boof
  this.tween(livesContainer.style, 'scale',
    [1, 0.7, 2, .8, 1.5, .9, 1.2, .95, 1], 680, 540,
    // late update as we want it obvs a live was lost
    () => livesContainer.innerText = `${this.lives}`
  );
},
onDeath() {},
onWinLevel() {
  this.onResetLevel();
  this.spawnNextLevel();
  this.showMenu();
},
onResetLevel() {
  // clean up.
  this.powerUps = [];
  this.paddles = [];
  this.addBall(this.width/2, Game.height - 60);
  this.addPaddle();
},
onStartGame() {
  // start
},
onResetGame() {
  // reset all props
},

Using on as a little hint that these happen based on an event. What? An event bus? Subscriptions? That sounds complicated. Don't worry about that. Let's animate the menu.

Animation sounds hard but actually it isn't as we can reuse our tweens. A show/hide menu.

hideMenu() {
  this.tween(menuPaused.style, 'scale', [1,1.1,0.5], 380);
  this.tween(menuPaused.style, 'opacity', [1,0], 300, 80, () => {
    menuPaused.style.opacity = 1;
    menuPaused.style.scale = 1;
    menuPaused.style.display = 'none';
    this.isPaused = false;
  });
},
showMenu() {
  this.isPaused = true;
  menuPaused.style.display = 'flex';
  titleDiv.innerText = `Level ${this.level}`;
  this.tween(menuPaused.style, 'scale', [0.5, 0.4, 1.1, 1], 380);
  this.tween(menuPaused.style, 'opacity', [0,1], 300);
}

flex/none are css options. Flex is just a row/column layout. Our menu container is a flex column. We make sure to pause first when showing but unpause after the animation is done when hiding.

Basic but serviceable.

This will let us win and lose now. Losing only resets score and level back to 0. Instead of a final level, the game will start over from level one but the starting speed of the ball will increase and the bricks will be stronger. Maybe power ups drop more often too.

But for that to work, we should update the goToNextLevel bit.

spawnNextLevel() {
  this.level++;
  const levels = {
    0: () => this.spawnLevel(),
    1: () => this.spawnLevel({
      predicate: ({x, y, i, j, xBrickCount}) => {
        if ((i % (xBrickCount >> 1)) === 0) {
          return;
        }
        let color = [255, 255, 255];
        if (j % 5 === 0) color = [255,200,200];
        if (j % 3 === 0) color = [200,255,200];
        this.addBrick(x, y, 0, color);
      }
    }),
  };
  const nLevels = Object.keys(levels).length;
  levels?.[((this.level - 1) % nLevels)]?.();
},

If we don't have at least 2 levels, it won't wrap around correctly, a side effect of modulo'ing with a 1. We also updated the total brick counts for the x and y axis in the predicate.

At this point, we can add more levels with different colored bricks, stronger bricks, etc. I think 10 levels is a good number.

STOP. I know what you are thinking. Can't AI just "magic" us up some cool level layouts?

Come on now, don't be like that. Relax. Be creative. Think of this like, practice for "leet" code interviews. We want a few little algos that place bricks in interesting ways.

Let's use that big beautiful

spongbob imagination rainbow

Remember, it is more about letting the player have fun. We want to dose out dopamine for the little gabo in our brains. Anticipation, build up, build up, release, and reset. The levels should chase this but still remain interesting as they progress.

Woh, this is so fun. It makes us want to add more bricks right? Like bomb bricks, or respawn bricks which will respawn the bricks around them. Oh, what about warp bricks which will warp to another location after getting hit!

Later later, finish the 10 first.

The boss level is boring. We will come back to it later when we add the boss. Oh, the boss is going to be extra spicy.

The levels are a bit long so we can omit the specifics. Here are a few tips though.

({x, y, i, j, yBrickCount, xBrickCount}) => {
  // store the mid points
  const midX = Math.floor(xBrickCount / 2);
  const midY = Math.floor(yBrickCount / 2);
  if (j === yBrickCount-1 || j === 0 || i === 0 || i === xBrickCount -1) {
    // edges
  }
  if (j === yBrickCount-2 || j === 1 || i === 1 || i === xBrickCount -2) {
    // second layer edge
  }
  if (i >= midX - 1 && i <= midX+1 && j >= midY - 1 && j <= midY+1) {
    // mid point expanding out
  }
  if (i === 0) // left
  if (i === xBrickCount-1) // right
  if (i % 3 === 0) // column skip
  if (j % 3 === 0) // row skip
}

With a little template like that it isn't too hard whip and tweak in the future.

While we are at it, we can add a bit more shine to the game too.

Do you feel it now Mr. Crabs?!?!?

This is not right. Something is still off. It just doesn't feel right.

What? Did you say something? You know what is missing? Spit it out already.

I can't hear you!

Is it really a game without sound? I don't think so.

That is correct, if you play games with sound turned off, you are wrong. Heck, if we had a way to stimulate the olfactory sense as easily as the auditory, you bet your ass we'd make players smell all kinds of nasty fantastic stuff. The power ball would be smokey and lasers like burnt ozone.

Until then, sound it is. The soundscape of a game tightens up the vibe. Something is better than nothing but the juice factor takes stage here too.

For example, when the ball hits a brick should it play a blishf sound? What happens if it hits the edge? What about when it hits 3 bricks in a row and then the edge and then a brick? Maybe the blishf should go up a note to a blaushf and then again and again for each consecutive brick resetting when it hits the edge.

Is there one short song on repeat? Or can each level have a theme? What about boss music?

There is no reason to over think this. Our sound engine api is a simple one.

this.playSound(name, pitch, volume, loop);
this.stopSound(name);
this.muteAudio(true|false);

We don't need any panning, doppler, or convolution based reverbs to have some rocking ear-candy. It is always possible to mute sound because for whatever reason there may be those crazy players who don't like that one song or that one sound effect and want it off. A polished experience always has this option and while our game may be a turd it is a glossy one.

Don't overthink this. Use whatever built in sound capability available. With javascript we are in decent hands.

Audio files are the first game "asset" we need to think about. Assets are resources that must be loaded. We could wait for all the sounds to load before starting the game which is a capital idea. Wait a little and then you can play, no loading screens.

What was that? What about memory limits? Ram? Relax friend. Don't worry about it. We haven't even loaded a single sound yet. That is a tomorrow's us kind of problem.

Let's get tunes going.

We are going to use javascript's standard sound api. On the surface it may seem complex but for us it will be dead simple. We create an AudioContext and attach a Gain node to it. This root node will allow for global muting of all sounds. Then, we will keep track of the audio files we have loaded along with what sources are actively playing for each file.

An audio file is the decode sound data and a source is what reads the sound data and plays it. Audio sources have an output we can connect them to like our Gain node from earlier.

If we want to control the volume of a single source, then we will need to give it it's own Gain node. Source -> Local Gain node -> Master Gain -> AudioContext.

There are other nodes javascript provides but this is all we need. The code is way simple.

First we preload.

audioCtx: new AudioContext(),
masterGainNode: null,
audioFiles: new Map(),
audioSources: new Map(),
isAudioMuted: false,
async preload() {
  const sounds = [
    // sound files
  ];
  this.masterGainNode = this.audioCtx.createGain();
  this.masterGainNode.connect(this.audioCtx.destination);

  return Promise.all(sounds.map(sound =>
    fetch(`/sounds/bronc/${sound}.ogg`)
      .then(res => res.arrayBuffer())
      .then(ab => this.audioCtx.decodeAudioData(ab))
      .then(buff => {
        this.audioSources.set(sound, new Set());
        this.audioFiles.set(sound, buff);
      });
  ));
},

After we have the data for the sound, we decode it, and add it to our loaded sounds. It is good to hold off on starting the game until after we have loaded the sound. We will use .ogg format as it is a lossless but decently compressed format. Feel free to use mp3 or whatever floats your boat. We can always come back and compress these if things get too fat.

// maybe toss a loading screen in
Game.preload().then(() => {
  Game.onResetGame();
  universe(lastTime);
});

Playing a sound is pretty easy too. We get our sound buffer by name, create a source, hook it up, and then play it!

playSound(name, pitch = 1, volume = 1, loop = false, onComplete = undefined) {
  if (!this.audioFiles.has(name)) {
    console.warn('woops no file', name);
    return;
  }

  const buff = this.audioFiles.get(name);
  const source = this.audioCtx.createBufferSource();
  source.buffer = buff;
  source.playbackRate.value = pitch;
  source.loop = loop;

  const gainNode = this.audioCtx.createGain();
  gainNode.gain.value = volume;

  source.connect(gainNode);
  gainNode.connect(this.masterGainNode);

  this.audioSources.get(name).add(source);
  source.onended = () => {
    this.audioSources.get(name).delete(source);
    source.disconnect(gainNode);
    gainNode.disconnect(this.masterGainNode);

    if (onComplete) {
      onComplete();
    }
  };
  source.start(0);
}

It is a good idea to clean it all up once we are done. Pitch is as simple as increasing or decreasing how fast we play sounds.

If we didn't care about stopping sounds, we wouldn't have to track the sources that are playing but tracking it gives us this.

stopSound(name) {
  if (!this.audioFiles.has(name)) {
    console.warn('woops no file', name);
    return;
  }

  const sources = this.audioSources.get(name);
  sources.forEach(s => {
    s.stop(0);
  });
},

The wonderful ability to make a sound stop and of course.

muteAudio(isMuted = false) {
  this.masterGainNode.gain.setTargetAtTime(
    isMuted ? 0 : 1,
    this.audioCtx.currentTime,
    0.1
  );
}

This will mute it all. The target time will transition the value, in our case gain or volume, to the given value over the given time 0.1s. This is like tweening from on to off.

Boom! Our sound engine is done. Thought that would be scarier right? Now is time for the real scary part, sound design.

This requires a bit of experimentation and taste. Picking sound assets or creating them takes time. Don't worry if it sounds terrible. We can use free public domain assets and still get something that sounds good as long as we are careful with what we pick.

Opengameart.org is an oldy but a favorite. It is bursting with all kinds of files most of which are public domain. With a bit of searching on there and we have a few songs and effects.

Don't be shy about doing a little processing of files yourself. We can pitch and volume change in engine which means we can even tweak the audio a bit in game.

For example, the edge bounce was too high pitch so a simple solution is to just pitch it down.

if (edgeBounce) this.playSound('edge_hit', 0.5 + Math.random()*0.2);
if (paddleBounce) this.playSound('paddle_hit', 1 + Math.random()*0.2);

A little randomness to the pitch helps break up repetition without adding more sound files.

Getting it juicy is all about that anticipation and payoff just like before. For brick hits, the balls will track how many bricks they have hit since the last paddle bounce. On each consecutive hit, they will play a higher and higher note eventually hitting a few chords before resetting with an overall pitch increase.

const Game = {
  hitSounds: [
    'sound_1',
    //etc
  ],
};

// later on
if (brickBounce) {
  const cycle = Math.floor(b.comboCount / this.hitSounds.length);
  const boost = 0.20;
  const rndPitch = Math.random()*.1;
  this.playSound(this.hitSounds[b.comboCount % this.hitSounds.length], 1 + boost*cycle + rndPitch, 2.2);
  b.comboCount++;
}

The audio files were not loud enough so we boost those a bit too. Keep in mind the volume is in decibels which is not linear. 2.2 is a 2.2x boost in decibels but that doesn't translate to a 2.2x boost to what humans hear.

Power ups need to feel impactful too. Creating a unique sound that represents what a given power up does is part of the "feel" we want. It doesn't have to be perfect but this helps let the player know what to expect. For example, the slow down and speed up power up is like a "dun dun duun dunnnn" pitching down or "doh doh dooh dihh" pitching up depending on slow or speed up.

Getting the laser bat sounds like a laser gun activating with bass and synth build up. A bigger paddle is a stretch sound. Splitting balls is a crunchy scissors snip. We do this for as many sounds as we can. Make sure to always give a slight pitch change too for almost all sounds, it really does help break up repetition.

The omega device will be a count down until the big boom.

[PowerUpTypes.OmegaDevice]: (game) => {
  game.omegaDevicePower += 1;
  game.playSound('power_omega', 1 - (0.1*game.omegaDevicePower) - Math.random()*.05);
  if (game.omegaDevicePower > 5) {
    game.omegaDevicePower = 0;
    for (const brick of game.bricks) {
      game.damageBrick(brick);
    }
    game.megaShake(game.camera, 30);
  }
  game.playSound('gameover', 0.8 +  Math.random()*.2);
},

Good job. All that is left is music.

spawnNextLevel() {
  const levels = {
    // level spawn code
  };

  const nLevels = Object.keys(levels).length;
  levels?.[((this.level - 1) % nLevels)]?.();

  this.stopSound(this.bkgSong);
  this.bkgSong = this.bkgSongs[(this.level - 1) % this.bkgSongs.length] ?? 'song_1';
  this.playSound(this.bkgSong, 1, 0.28, true);
}

We keep track of what theme is playing and stop it before playing the next one. We "could" stop all the sounds when we switch but that feels too jarring.

The last bit to top off the audio here is to give players the ability to turn it all off. I know! Who in the world would want to do that?!?

Toss in a button to the bottom right and make it juicy.

Great. The only thing that made need to be tweaked is the boss. Speaking of the big bad.

Making a Big Bad

Boss time. Our final level kinda looks cool, but is a bit boring. Let's replace it with a cool boss battle.

Boss battle? In a break out game? How will that work?

The idea is to have a worm wiggle around moving to and fro. It will have a body made of strong bricks. This can be done by moving the bricks around as if they were the tail of the worm. As the worm moves, we find what positions need to be filled at the head and warp the oldest bricks to those spots just like the classic snek game.

It will also cause chaos with physics as bricks could "warp" right on top of a ball. Shit is gonna go ham. It will be awesome. Implementing this will require work.

The boss will be another type of object in the universe in this case we will call them "worms" as they will be wiggly little creatures. They need a location, speed, size and a target point. They will also need what bricks make up their body. We could have many worms at once who knows!

Processing an array of "boss" worms also helps to stay consistent with our game engine's convention of arrays of object types.

const Game = {
  worms: [],

  addWorm(x = this.width/2, y = this.height/2, bricks = [], size = 30, speed = 300) {
    this.worms.push({
      x,
      y,
      dx: 0,
      dy: 0,
      size,
      tail: bricks,
      targetX: x,
      targetY: y,
      speed
    });
  },

  tickWorms() {
    // move the wormy boys!
  }
}

The simple part of movement is to apply a force to the worms dx and dy values based on a target we want it to move towards. Once, it is close enough to the target point, we pick a new random target and repeat. This simulates an "overshoot" sliding effect of the point which makes it feel a little more organic.

tickWorms(dt) {
  for (const worm of this.worms) {
    let { targetX, targetY, speed } = worm;

    const dirX = targetX - worm.x;
    const dirY = targetY - worm.y;
    const dist = Math.sqrt(dirX * dirX + dirY * dirY) || 1;
    worm.dx += dirX / dist * speed * dt;
    worm.dy += dirY / dist * speed * dt;
    worm.dx *= 0.99;
    worm.dy *= 0.98;
    worm.x += worm.dx*dt;
    worm.y += worm.dy*dt;

    if (dist < worm.size / 2) {
      worm.targetX = Math.random()*this.width;
      worm.targetY = Math.random()*playAreaHeight;
    }

    // update worm body
  }
}

The little bit of friction there helps to dampen the movement. We need the || to prevent dividing by zero. You can guard against that differently if you like.

After we move, it is time to update the body. This has a few steps starting with finding the grid positions of the worm's tail.

tickWorms(dt) {
  const playAreaHeight = this.height - 100;
  const bW = BRICK_SIZE[0]+1;
  const bH = BRICK_SIZE[1]+1;
  for (const worm of this.worms) {
    // update worm movement

    worm.tail = worm.tail.filter(b => b.isAlive);
    const occupiedGrid = new Map();
    for (const brick of worm.tail) {
      const gx = Math.floor(brick.x / bW);
      const gy = Math.floor(brick.y / bH);
      occupiedGrid.set(`${gx},${gy}`, true);
    }


  }
}

Make sure to filter out and bricks that have died first since each worm tracks a subset of the universe's bricks.

Next up is to build a grid of the locations that are empty based on the worm's size and position.

const headRadius = worm.size / 2;
const minGridX = Math.floor((worm.x - headRadius) / bW);
const maxGridX = Math.floor((worm.x + headRadius) / bW);
const minGridY = Math.floor((worm.y - headRadius) / bH);
const maxGridY = Math.floor((worm.y + headRadius) / bH);
let targetGridCells = new Map();

for (let gx = minGridX; gx <= maxGridX; gx++) {
  for (let gy = minGridY; gy <= maxGridY; gy++) {
    const key = `${gx},${gy}`;
    if (!occupiedGrid.has(key)) {
      targetGridCells.set(key, {gx, gy})
    }
  }
}

Rather than try and fill all these locations we will instead move just a single brick to an empty location.

if (targetGridCells.size > 0) {
  const randomIndex = Math.floor(Math.random() * targetGridCells.size);
  const { gx, gy } = [...targetGridCells.values()][randomIndex];
  const oldestBrick = worm.tail.pop();
  const brickKey = `${oldestBrick?.x},${oldestBrick?.y}`;
  if (oldestBrick && !targetGridCells.has(brickKey)) {
    oldestBrick.x = gx * bW + bW / 2;
    oldestBrick.y = gy * bH + bH / 2;
    worm.tail.unshift(oldestBrick);
  }
}

There could be a frame where the worm has no tail before the win condition happens so guard against that. Also, it looks a little bit better if the bricks only move if they are outside the worm's size range.

And finally add it to the boss level.

0: () => {
  this.spawnLevel({
    predicate: ({x, y, i, j, yBrickCount, xBrickCount}) => {
      // negative so bricks start off screen until moved
      const brick = this.addBrick(-x,-y,0, [20+5*i, 20+4*(yBrickCount-y), 20+10*(xBrickCount-i)]);
      brick.health = 5;
    }
  });

  this.addWorm(undefined, undefined, this.bricks, 50);
},

Time for a play test of the boss.

Very nice. 10 points to Slytherin!

With that, we can make it so all the bricks get stronger and the game faster after each boss kill. We could also spawn 2 bosses per "Game" loop too.

I think we know where this is going.

Number go up

A game is not a game unless it is a roguelike or roguelite to be pedantic. I didn't make the rules the players did when they stopped buying games and started gambling. We know the drill here. After each round, show three cards. Each card is a persistent power up for all future levels.

Give yourself a pat on the back because this whole time all the power ups have been pretty multiplicative anyways.

Eventually the player has to lose. We can then let them spend the score they accumulate on permanent upgrades. More starting lives, bigger paddle, swap out omega device stein power with the Chthonic Cannon.

Tracking stats is important too. Like how many times a ball hit the edge, power ups, largest ball size, number of balls missed, etc. Achievements can be added around hitting certain stats unlock more cards. Heck, we can add purely cosmetic skins like different ball impact effects.

We will hold off on these features and add one final bit of polish to tighten up the current experience.

Animate brick spawning

brick.scale = 0;
// location based
Game.tween(brick, 'scale', [0, 1], 480, distance(i, j, midX, midY) * 60);
// directional
Game.tween(brick, 'scale', [0, 1], 480, (i+j) * 60);

Make bricks "pulse" based on entrance animation

We could do this but it felt like a bit too much movement. It isn't hard though, add an infinite tween once the entrance is over.

brick.scale = 0;
// location based
Game.tween(brick, 'scale', [0, 1], 480, distance(i, j, midX, midY) * 60);
// directional
Game.tween(brick, 'scale', [0, 1], 480, (i+j) * 60, () => {
  Game.tween(brick, 'scale', [1,.9,1], 480 (i+j)*60, undefined, Infinity);
});

Tweak text animation.

The text is a bit bland which can be changed with our tween engine.

makeFancyText(element, text, height = 3, durationMs = 2000, staggerMs = 120) {
  element.innerHTML = '';
  text.split("").forEach((char, index) => {
    const span = document.createElement('span');
    span.textContent = char;
    span.style.display = "inline-block";
    span.style.whiteSpace = "pre";
    span.style.translate = "0 calc(var(--y, 0) * 1px)";
    element.appendChild(span);

    const proxy = {
      y: 0,
      set y(val) {
        span.style.setProperty('--y', `${val}`);
      }
    }
    this.tween(proxy, 'y', [0, -height, 0, height, 0], durationMs, staggerMs * index, undefined, Infinity);
  });
}

CSS requires some properties to include the unit in them. Our tweening engine only tweens numbers which is great so a little workaround is to use a proxy to hook into field updates.

Power Ups

The power ups look a little lame. Adding a tween with another layer gives them an eclipse like look that I find pleasing.

Fake CRT Effect

It would be interesting to add a fake CRT effect. Using an svg filter to apply what is called chromatic aberration works well enough and then overlaying a repeating gradient pattern for "scanlines" tops it off. This doesn't give that full pixelated curve you would expect but it looks nice enough.

Naturally, this can be disabled. A game is not a game if users cannot configure it to their taste.

<svg width="0" height="0" style="position:absolute;">
  <defs>
    <filter id="full-crt">
      <feColorMatrix in="SourceGraphic" type="matrix"
        values="1 0 0 0 0
                0 0 0 0 0
                0 0 0 0 0
                0 0 0 1 0" result="redChannel" />
      <feColorMatrix in="SourceGraphic" type="matrix"
        values="0 0 0 0 0
                0 1 0 0 0
                0 0 1 0 0
                0 0 0 1 0" result="greenBlueChannel" />
      <feOffset in="redChannel" dx="-1" dy="0" result="redShifted" />
      <feOffset in="greenBlueChannel" dx="1" dy="0" result="greenBlueShifted" />
      <feBlend in="redShifted" in2="greenBlueShifted" mode="screen" />
    </filter>
  </defs>
</svg>

What this does is shift the color channels to the left and right giving a cyan and red 1 pixel "blend" to the whole game. We can call this a poor man's shader.

Omega Device Meter

The player doesn't know how charged the omega device is. Copy the lives counter and move it to the right with a purple shadow and that solves it.

Great. Now we have a game.

A Game Engine

I think it is safe to say, we have made a game. And not some contrived "in theory this is a game" but a game game. Something that "feels" like a game. Something that isn't low effort. If we were to build out additional content while maintaining the same polish, I can see someone spending money on it. After all, capitalism is the ultimate measure of worth.

Hold on a second. If this is a game? Then doesn't that mean we have a game engine too?

That is right, this is a fully functional game engine. It has graphics, physics, sounds, tweens, assets, UI, all that good stuff. It is even multi-platform! It runs on mobile, desktop, console, even smart tvs! Talk about a powerful game engine. Who knew a few html divs could do so much.

While I do like this engine I think now that we have a game behind us we could improve some aspects.

Most objects in our universe have shared traits, position, color, maybe velocity too. Maybe they have a size or a width and height. Sometimes objects can be drawn and other times they have only logic.

There are a few ways we could better model this.

OOP

One way is to focus on the data modeling side. We group objects with their code inheriting from a Base which provides a skeleton the engine expects all objects to conform to.

class Base {
  position: {
    x:0,
    y:0,
  };
  size: {
    width: 10,
    height: 10,
  };
  color: {

  };

  tick(Game) {}
  draw(Game) {}
}

class Ball extends Base {
  tick(dt, Game) {
    // ball stuff
  }
  draw(Game) {
    // ball draw
  }
}

const Game = {
  objects: [],

  tick(dt) {
    this.objects.forEach(o => o.tick(dt, this));
  }
}

While that structure can be massaged around to your liking and it does fit in with the current engine, I prefer a different style.

Data First

Let's take a step back. Our universe is full of things and these things can but do not always have data associated with them. Then there are systems which transform things across time. A ball has data and the tick will transform it based on the dt delta time. Data can be derived from a snapshot in time of the universe such as a "drawing" of what things look like say 20s into the game. Input is really just more data that gets processed too.

We see where this is going. Let's imagine an api to make it super easy to focus on a data driven style.

First, we make the universe.

const Universe = new Universe();

Then we fill it up with data.

Universe.addEntity({
  x: 0,
  y: 10,
  dx: -1,
  dy: 1,
  size: 20,
  color: [100,200,100],
});
Universe.addEntity({
  x: 0,
  y: 10,
  size: 20,
  color: [100,200,100],
});

With data, rules are added to represent how it moves across time.

function MovementSystem(world) {
  for (const thing of world.query(['x','y','dx','dy'])) {
    thing.x += thing.dx * world.dt;
    thing.y += thing.dy * world.dt;
  }
}

function DrawSystem(world) {
  for (const drawableThing of world.query(['x','y','color', 'size'])) {
    // draw it
  }
}

Universe.addSystem(PhysicsSystem);
Universe.addSystem(DrawSystem);

Finally, we can simulate the universe.

requestAnimationFrame(dt) {
  Universe.simulate(dt);
}

This style is incredibly easy to implement while also being powerful. Anything that has a position, size, and color, is drawable. Movement code could be reused for both the Worm and balls or anything else that has a position and velocity. Cleaning up "dead" things is trivial! No more duplicated clean up code.

Universe.addEntity({
  x: 0,
  y: 10,
  size: 20,
  color: [100,200,100],
  isAlive: true,
});

function DeathSystem(world) {
  const deathables = world.query(['isAlive']);
  world.deleteEntities(deathables.filter(e => !e.isAlive));
}

The idea is that querying will return ONLY the things that have all of the data requested. If an object doesn't have isAlive it doesn't get returned in the query.

The kicker here, and why I LOVE this design, is because with a few dozen lines of code, you can get an engine that can power anything you throw at it. The object-oriented approach requires deep domain understanding of "what" the engine will support constantly narrowing the model of the universe down.

With a data driven approach like this, not all systems and entities will be reusable for all games but the majority will be. And reusing them requires no refactoring or complex untangling, just grab your handy dandy DeathSystem and slap isAlive to anything you want to have die!

"What about assets and resources like images and sound?" asks you. Great question. Resources are loaded outside of the world but once they are loaded, they are data too. You can query them like anything else. Playing a sound is as simple as adding an entity to the universe.

Universe.addEntity({
  name: 'big_boom',
  pitch: 1,
  volume: 9001,
  sound: true,
});

function SoundSystem(world) {
  for(const sound of world.query(['name', 'sound', 'volume', 'pitch'])) {
    sound.isAlive = false;
    // play the sound
  }
}

A SoundSystem can process all the sound data playing the sound by name and then add an isAlive to false. No need to reimplement cleaning things up.

I bet we are both getting hungry so let's wrap this up with a retrospective.

Mashed Potatoes

I hope you had fun, I certainly did.

I know I know, why make such a cursed game engine? Why use box shadows of all things to draw with? Svg instead of a shader? Why in the world pick javascript? This will never scale. This will never work!

And yet, it kind of does? It accomplished exactly what we set out to do and it feels good to play. An entire game can be made around such simple primitives. No shaders, no gpu compute, multithreading, or complex physics needed.

Game engines scare people. They seem like big monstrously complex animals. I don't think they are. And best of all, when you build your own game engine (starting with a game), the game "feels" unlike anything on the market because it IS unlikely anything on the market. All the quirks good and bad, give a flavor that is diabolically hard to reproduce.

While I love the game Expedition 33, I didn't play it past a few hours. It felt like a generic rpg in unreal engine because well...that is kind of what it is? I ended up watching the cut scenes on youtube. Imagine if they cooked up their own engine, jank and all?

Generative AI will make games even more generic and tasteless. While some loath this, I say "bring it on" because as the world gets flooded with mash potatoes, all it takes is adding a tiny bit of salt and you can make something deliciously original.

From one chef to another, keep that fire burning.

last time
what is a favicon?

where to find me?
